Anchor Kit for In-Ground Basketball Goal

Group of Kids Playing on Ryval Hoops Basketball Goal

Boy Laying Up on Ryval Hoops Basketball Goal

Girl Shooting on Ryval Hoops Basketball Goal

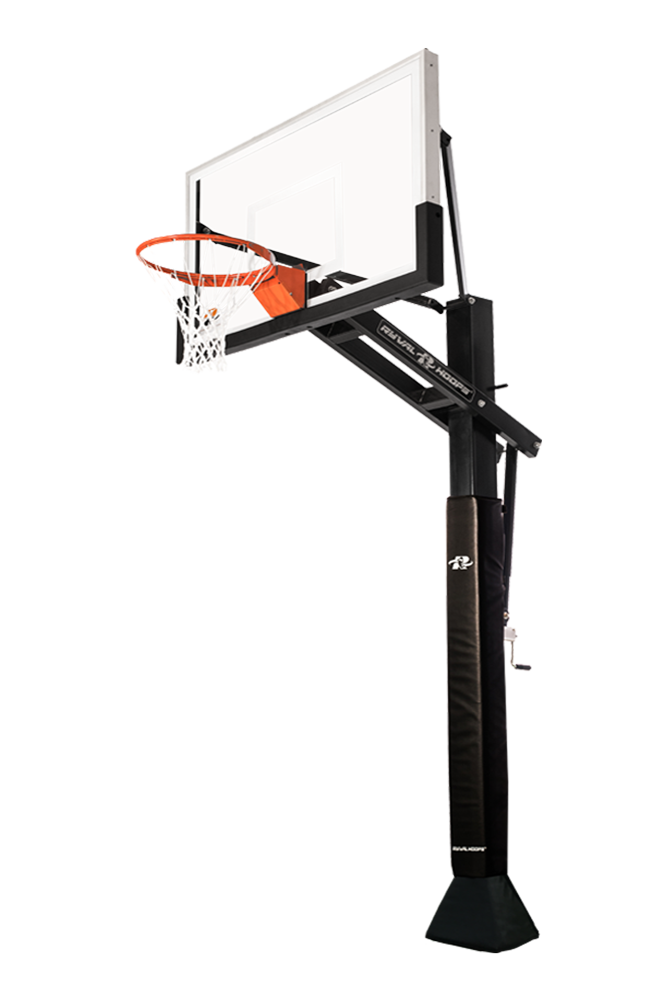

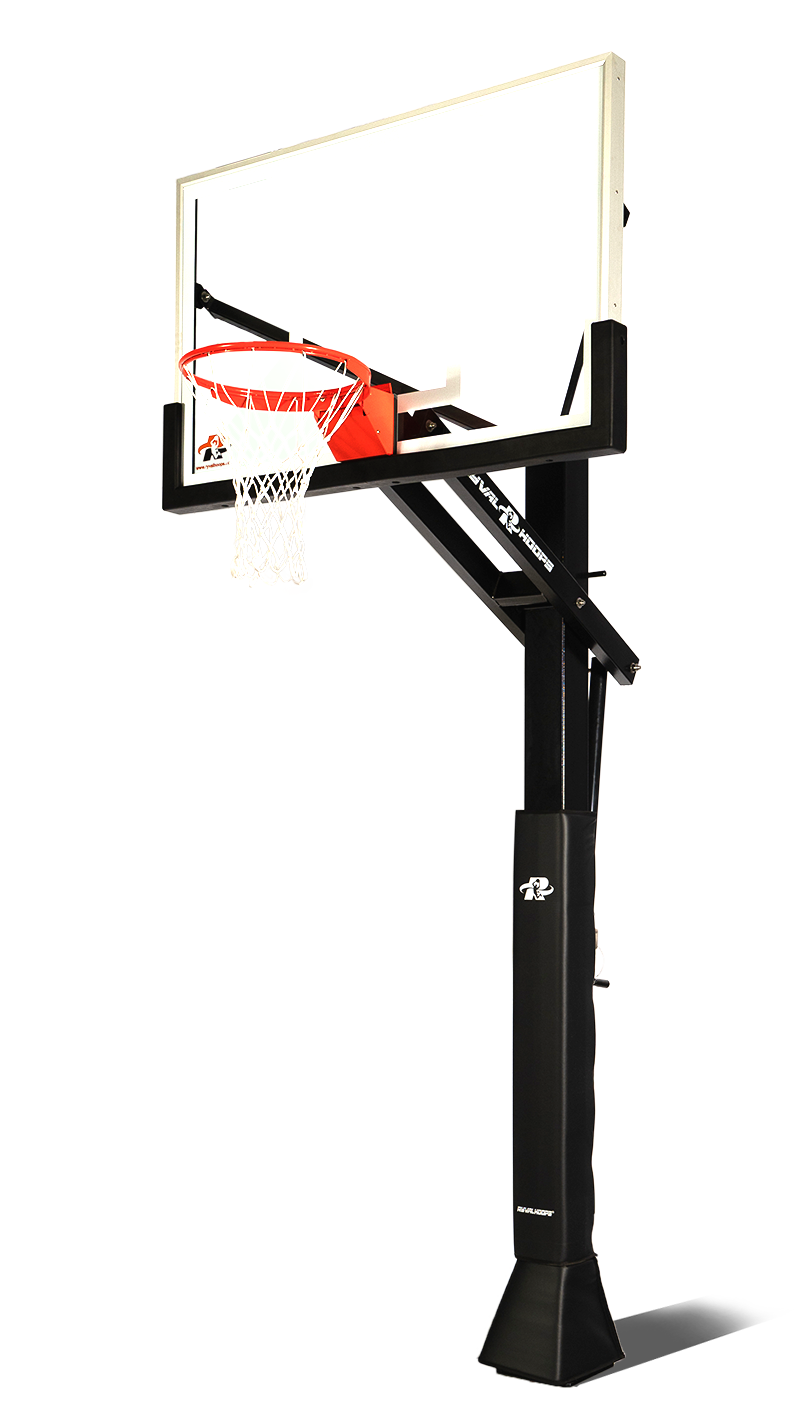

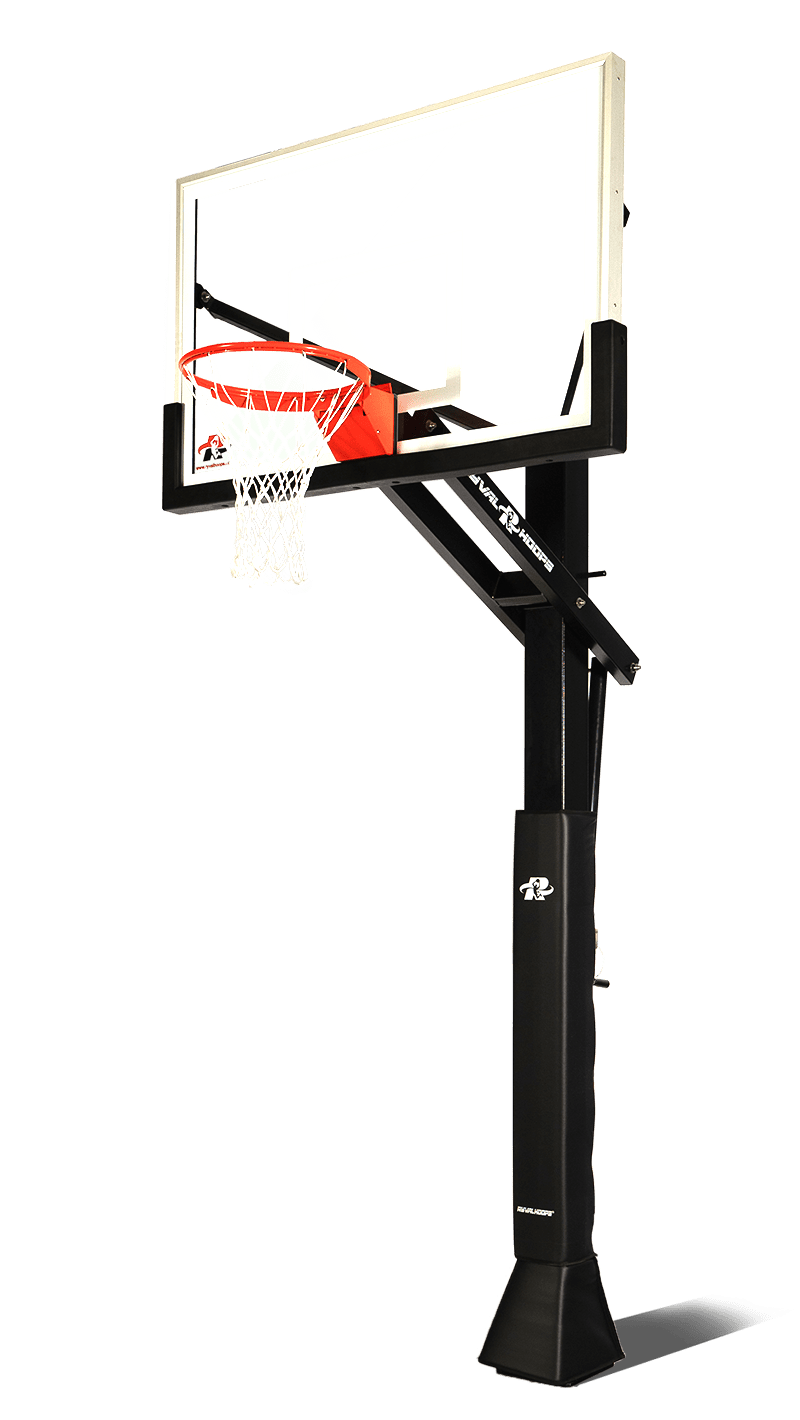

X660

The Phenom X series Clearview glass backboard eliminates the backboard frame out of the shooting square, giving it the arena/gym like look. The X660 has the right blend of size, player features and price, makes it one of our most popular goals. No additional accessories to purchase, it comes ready to play with backboard edge, pole & gusset padding. Adjustable range down to 7.5”, were younger players can work on proper shooting technique with lower rim height.

Included Free

Pole & Gusset Padding ($129 Value)
Backboard Edge Padding ($129 Value)
Elec. Zinc Rust Protection($99 Value)
Pro XL Stainless Steel Hdwr ($100 Value)

$1,399.00

Please call your local dealer for shipping and/or delivery & installation scheduling times.

Features

Slide

Backboard

Arena View/Clear View Backboard Design

Our Clear View Backboard is designed to eliminate the metal backboard frame distractions in the shooting square area. The gym-like rebounding play of the backboard comes from our square-tube steel frame that is welded together creating a rigid surface for the tempered glass.

3/8" Tempered Glass
Ryval glass backboards will not fog, cloud or scratch, which are characteristics of acrylic backboards. Structurally, the 3/8” tempered glass performs similar to gym style backboards in rebounding & game play.

Slide

Backboard

60" Backboard Size
Ryval 60” backboards outperform box store brands and are popular with homes that have one, two and three car driveways. Very popular with moderate size courts.

Slide

Backboard

16’ of Steel Backboard Frame
The X660 frame is constructed with 16 feet of powder coated 2” x 2” and 2” x 1” square tube steel to support the tempered glass backboard & flex rim.

Gym-Quality Ball Deflection & Rebounding
Gymnasium quality rebound response for a competitive play performance.

Slide

Backboard

2.75" Die Cast Aluminum Frame
The 2.75” aluminum frame protects glass edge and adds gym-like styling.

1" Thick Backboard Edge Padding
ALL Ryval backboards come equipped ready to play with factory pre-installed safety backboard edge padding. The pre-installed padding also is added protection for the glass backboard during shipping.

Slide

Pole

Thick 11 Gauge Steel
The Phenom Series pole is 11-gauge (1/8”) and rust protected with zinc coating, then powder coated to support years of competitive play.

4 Welded Support Gussets
The Phenom Series 11-gauge pole is welded to base plate with 4 husky gussets adding substantial stability. Gussets help to minimize vibration, pole shake.

One-Piece Heavy-Gauge Steel Pole 
Ryval only offers one-piece pole designs, lessens shake, sway & minimizing vibration.

Slide

Pole

1/2 Inch Thick Base Plate
The main pole is welded to a 3/8” steel base plate. The base plate is the anchor point between the “J” bolt pier base & main structural pole.

Adjustable Slotted Base Plate
The slotted holes allow for minor adjustment that often is needed to square-up your pole with your driveway or court, after concrete has set.

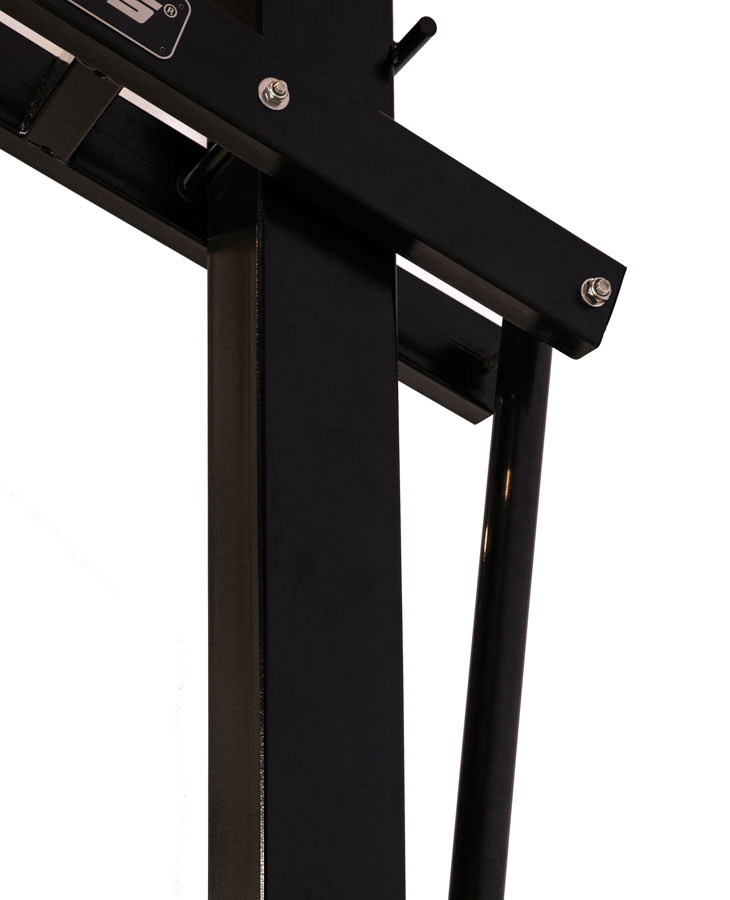

XL Stainless Steel Hardware 
Exceptional resistance to corrosion, higher tensile strength than standard zinc coated hardware & aesthetically appealing. Ryval Hoops Exclusive Stainless Steel nylon locking nuts insure your goal hardware does not loosen with play over time.

Slide

Pole

1.25” thick Safety Pole Padding & Gusset Padding 
All weather custom fitted 1-1/4" thick high-density foam pole & gusset pad helps keeps players safe during aggressive competition. Secures with heavy-duty Velcro straps and is designed to cover the front and two sides of the main pole. Pyramid style Gusset pad extends to cover base plate gusset area & j-bolt hardware.

Slide

Assembly

Can I Take My Goal with Me if I Move?

Ryval Hoop's main pole base is fastened to 4 very large J-bolts that are in a concrete pier. You would only need to purchase a Ryval J-bolt ground anchor assembly kit for your new location. After some disassembly, you would un-bolt the goal from the J-bolts & move it to your new home.

Slide

Assembly

Steel-Reinforced Ground Anchor Pier
4 pieces of 1/2” steel rebar is included to reinforce your concrete pier for a long-lasting solid base.

J-Bolts & Template Pier Installation
The pole is anchored to the pier with 4 hardened zinc plated steel J-bolts. A steel template is included to ensure the J-Bolts are set in the concrete perfectly and later will line up with the base of the pole.

Slide

Assembly

Fine Calibration Leveling Nuts
Eliminates the chance of a crooked or out of plumb pole that are traits of direct-burial pole and flange to flange-mounted goal systems. Every Ryval goal pole can be installed to perfect plumb with fine adjustments that can be made with the J-bolt Leveling Nuts.

Slide

Assembly

Goal Weight
352 lbs.

Goal Shipping Weight
407 lbs.

Slide

Rim

Dual Spring Heavy-Duty Break Away Flex Rim w/ProTube™ Net Connector

Best in its class, superior to box store rims, meets NCAA and NFSHSA specifications. The two calibrated heavy springs are tuned for regulation competitive play and allow the rim to flex under pressure. The rim will instantly spring back to the horizontal playing position when the player releases force on the rim. The rim is secured to the lower main structural arm with a heavy gauge 5mm thick mounting plate. The net securing feature, that is similar to the NBA, is designed for safer rim play, uses a nearly unseeable 16mm diameter Stainless Steel wire thru continuous tube to safely attach the nylon net so that there is nothing for players to catch their fingers on.

Regulation Ring
5/8" diameter solid steel ring is ready for years of dedicated practice & play.

Slide

Rim

Rigid Rim Ring
Welded gussets support the regulation ring 50% of its circumference making it unbendable for any dunk.

Heavy Gauge Steel
Ryval rims are built for the full force of your game.

Classic Orange
A baked-on UV resistant durable orange powder coat finish protects your rim from rust.

Slide

Rim

ProTube™ Net Connector
Eliminates the classic spiral net ties, a section of the net will never un-loop during play. Uses a nearly invisible continuous stainless steel wire thru tube to attach the net in place, eliminating anything for players to catch fingers on. This style of net attachment system is used in NBA & NCAA.

All-Weather Net
Designed to last years in all climates.

Slide

Rim

Innovative Rim Mounting
The risk of breaking your tempered backboard glass is eliminated with a unique way of mounting the rim directly to the lower main structural arm, which takes all pressure from the rim and transfers it thru the arm to the main structural pole. This is accomplished by cutting out the glass where the rim fastens to the lower structural arm eliminating any way for the rim springing back to contact the glass during play.

Slide

Adjustable

Adjustable to As Low As 7.5'
Younger competitors can work on proper shooting technique at 7.5' rim height.

Variable Height, Not Fixed Intervals
Unlike other brands that will only adjust in 6" intervals Ryval Hoop goals can be adjusted to any height you want, increasing the height as you master them.

No awning cranks, No broomsticks
No parts to hunt for in your garage to adjust the height of your goal. Turn the handle right to go up, left to go down.

Slide

Adjustable

Enclosed Actuator
A fully enclosed actuator mechanism keeps children fingers safe while adjusting the height.

Removable Handle
The X660 removable actuator crank handle is secured with a wired pin. Removing the handle would prevent unauthorized height adjustment for younger players during unsupervised play or if you leave for a vacation and want the goal to remain at a fixed height.

Slide

Accurate Rim Height Indicator on basketball system

Adjustable

Rim Height Indicator Location
The rim height indicator is on the actuator near eye level for easy viewing to the person adjusting the goal height.

Accurate Rim Height Indicator Installation
The rim height indicator is the very last step of the basketball goal installation. The height indicator is set after adjusting the rim ring to regulation height of 10 feet above the court surface below.

Accessible Actuator Handle
Ryval’s rim height adjusting crank handles are mounted to be accessible for the reach of all ages.

Compare Models

	X660	D560	C554
BACKBOARD SIZE	60 x 38”	60″ x 36″	54” x 36″
GLASS THICKNESS	3/8″ Tempered Glass	8mm Tempered Glass	1/2” Tempered Glass
BACKBOARD TYPE	Pro Clear/Arena View	Standard H Frame	Pro Clear/Arena View
BACKBOARD PADDING	1″ Thick	1″ Thick	1″ Thick
POLE SIZE	6″ x 6″	5″ x 5″	5″ x 5″
POLE THICKNESS	11 Gauge	12 Gauge	7 Gauge
POLE PADDING	1-1/4” Thick	No Pole Pad	2” Thick
GUSSET PAD	1-1/4” Thick	No Gusset Pad	2” Thick
OVERHANG	2.5′	2.5′	3′
ADJUSTABLE	7.5′ to 10′	8′ to 10′	5′ to 10′
LIFT ASSIST CYLINDERS	0	0	1
RIM	Dual Spring Heavy Duty Break Away Flex Rim w/Pro Tube™ Net Connector	Medium Duty Flex	Dual Spring Heavy Duty Break Away Flex Rim w/Pro Tube™ Net Connector
RUST PROTECTION	Electroplated Zinc		Hot Dip Galvanized
HARDWARE	XL Stainless Steel	Quality Zinc Plated	XXL Stainless Steel
FINISH COATING	Premium Powder Coat Paint	Black Textured Powder Coat Paint	Premium Powder Coat Paint
WEIGHT	352 lbs	263 lbs	458 lbs
WARRANTY	Lifetime	5 Year	Lifetime

X660	D560	C554
BACKBOARD SIZE
60 x 38”	60″ x 36″	54” x 36″
GLASS THICKNESS
3/8″ Tempered Glass	8mm Tempered Glass	1/2” Tempered Glass
BACKBOARD TYPE
Pro Clear/Arena View	Standard H Frame	Pro Clear/Arena View
BACKBOARD PADDING
1″ Thick	1″ Thick	1″ Thick
POLE SIZE
6″ x 6″	5″ x 5″	5″ x 5″
POLE THICKNESS
11 Gauge	12 Gauge	7 Gauge
POLE PADDING
1-1/4” Thick	No Pole Pad	2” Thick
GUSSET PAD
1-1/4” Thick	No Gusset Pad	2” Thick
OVERHANG
2.5′	2.5′	3′
ADJUSTABLE
7.5′ to 10′	8′ to 10′	5′ to 10′
LIFT ASSIST CYLINDERS
0	0	1
RIM
Dual Spring Heavy Duty Break Away Flex Rim w/Pro Tube™ Net Connector	Medium Duty Flex	Dual Spring Heavy Duty Break Away Flex Rim w/Pro Tube™ Net Connector
RUST PROTECTION
Electroplated Zinc		Hot Dip Galvanized
HARDWARE
XL Stainless Steel	Quality Zinc Plated	XXL Stainless Steel
FINISH COATING
Premium Powder Coat Paint	Black Textured Powder Coat Paint	Premium Powder Coat Paint
WEIGHT
352 lbs	263 lbs	458 lbs
WARRANTY
Lifetime	5 Year	Lifetime

Shipping

Standard Freight Delivery

Standard curbside residential delivery in lower 48 states.
Lift Gate service.
You will receive a tracking number same day your goal leaves warehouse.
Carrier will call and schedule delivery time for the curbside delivery.
Shipment is fully insured for freight damage.

**Standard curbside residential delivery with lift gate service in the lower 48 states. Standard delivery service does not include Special Delivery Services. Scheduled delivery appointment and adult signature is required. Some Restrictions do apply. Contact us for details and pricing for Special Delivery Services.**

Specs

Pole
Pole Size	6” x 6” with 11 gauge (1/8″) steel thickness
Pole / Gusset Padding	Free 1.25″ Thick Pole and Gusset Padding ($129 Value)
Flanged Base	11″ Wide x 11″ Long Base with 9″ between Anchor Holes (Center to Center)
Flanged Base Holes	Slotted for minor adjustments
Gussets	4 Welded Gussets (2 Front and 2 Rear)

Backboard
Backboard Size	60” x 38” x 3/8″
Backboard Glass	Tempered Glass
Backboard Steel Frame	2″ x 1″ on top and 2 sides; 2″ x 2″ on bottom steel perimeter frame concealed behind backboard
Backboard Aluminum Trim	2-3/4″ x 1″ aluminum frame provides unmatched esthetics and protects glass from damage
Rim Mounting Type	Direct Rim Mounting directly to the goals lower arm with no risk of damaging glass
Backboard Padding	1” thick edge padding pre-installed on backboard

Extension Arms
Overhang	2.5′ from front of pole to front of backboard
Main Extension Arm	4″ x 2″ x 14 gauge (5/64″) steel thickness. Two cross members.
Upper Extension Arms	2″ x 1″ x 14 gauge (5/64″) steel thickness.

Adjustable Height
Adjustable	7.5′ to 10′
Crank Handle Height	4′
Crank Handle Type	Removable 90° Crank Handle
FX Lift Assist Cylinders	Not Available on this model

Rim
Type	Dual Spring Heavy Duty Break Away Flex Rim
Net Connection	Pro Tube™ Net Connector
Rim Mounting Type	Direct Rim Mounting directly to the goals lower arm with no risk of damaging glass

Rust Guard
Hardware Protection	XL Stainless Steel Hardware
Frame Protection Undercoat	Electroplated Zinc
Finish Coating	Premium Black Powder Coat

Anchor
Moveable to new location	Yes, Just need a new J-Bolt Kit
J-Bolt Quantity	4
J-Bolt Size	3/4″ diameter 19″ Long

Shipping
Shipping Service	Standard Curbside Delivery
System Weight	352 lbs.
Shipping Weight	407 lbs.
Packaging	3 boxes on 2 pallets

Warranty
Warranty Type	Lifetime Warranty
Dunking & Hanging	Warranty covers dunking & hanging
