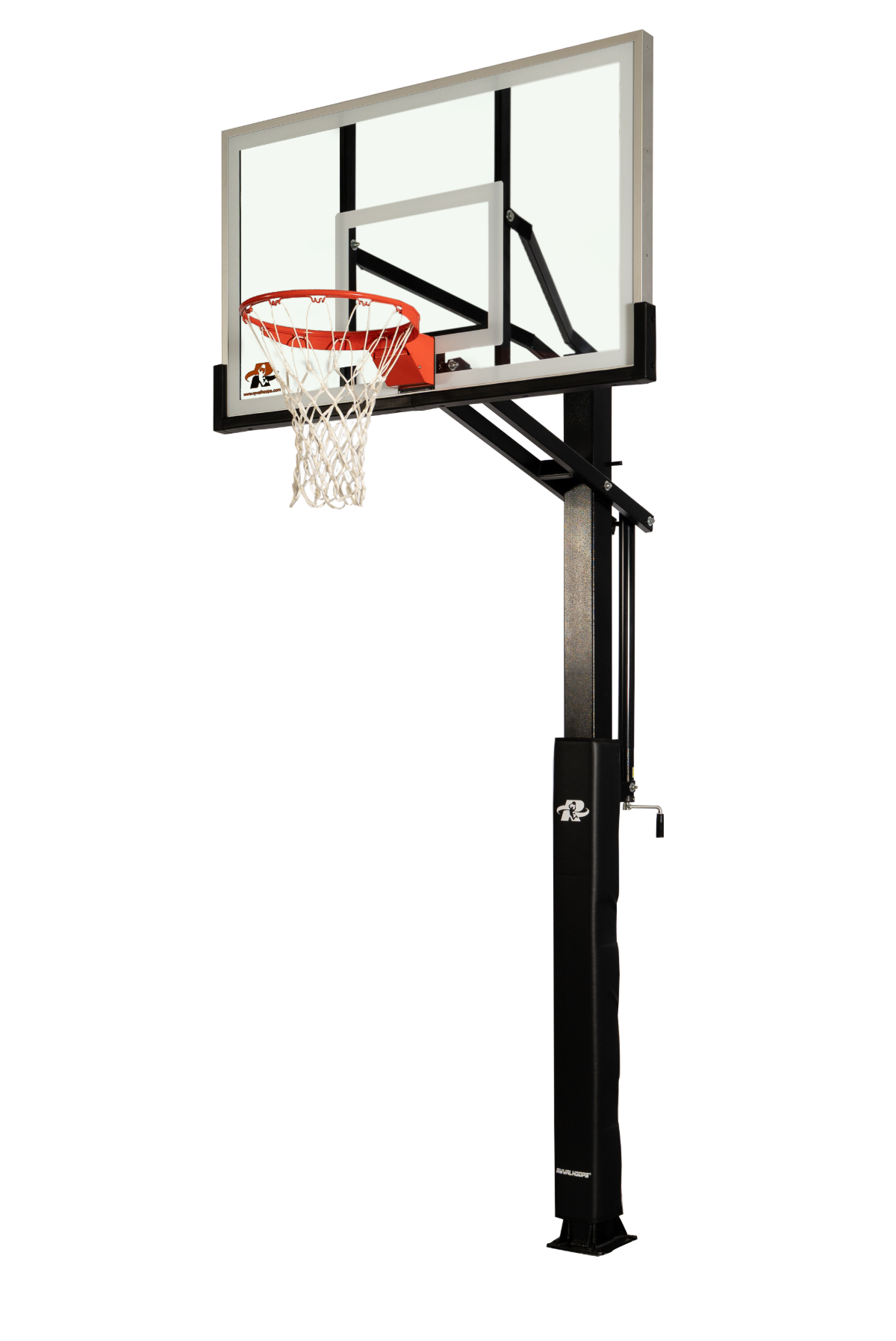

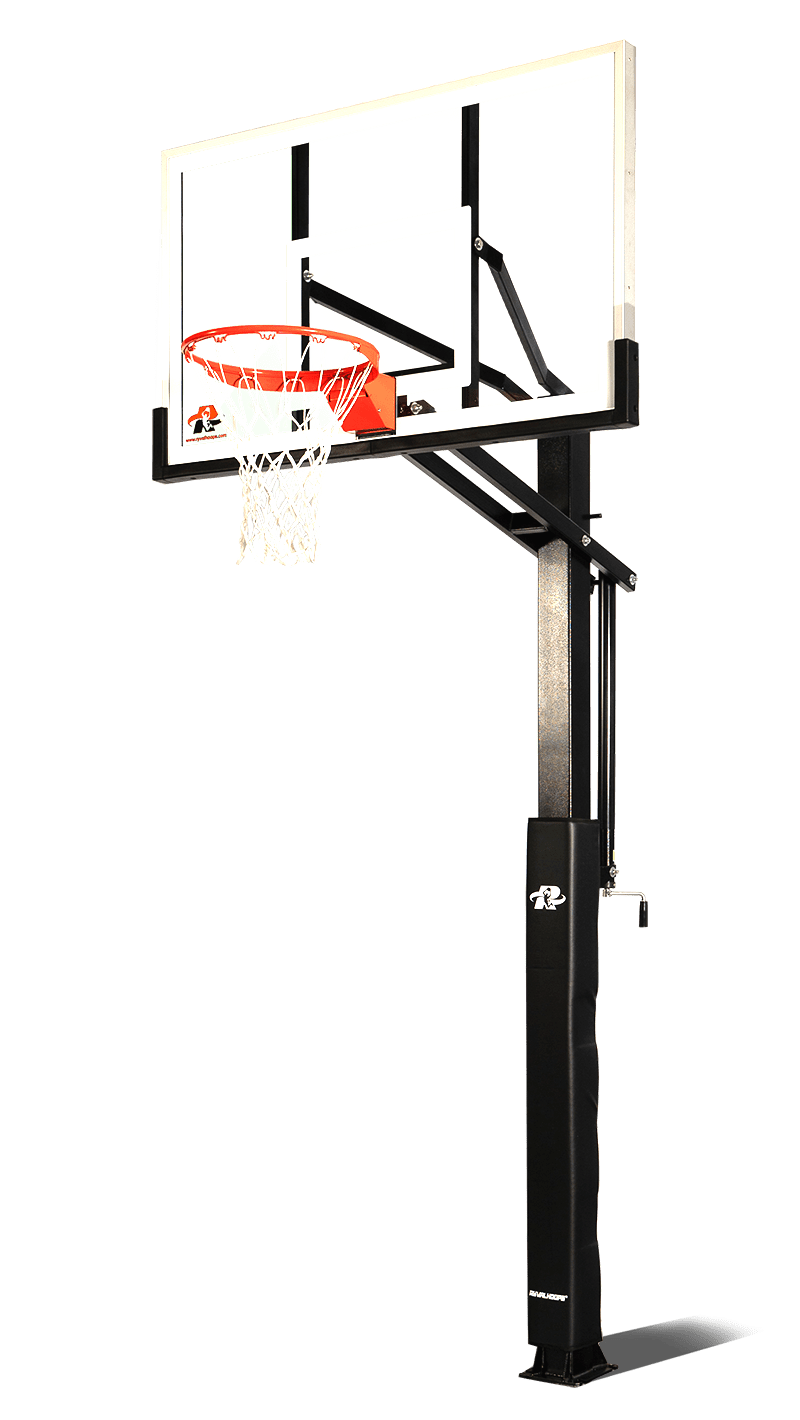

D560 basketball goal is ready for a driveway game of hoops or just learning the game of basketball. This basketball system has all the features players are looking for. By directly connecting the flex-rim to the lower structural arm on the basketball system, we ensure the integrity of your backboard. This basketball hoop includes safety backboard edge-padding. Whether you have a tennis / basketball court, or a 1, 2, 3-car garage driveway, a Ryval Hoops in-ground basketball goal is performance-ready for family friendly play or serious competition. The basketball hoop has a solid rebound play off the 60” tempered-glass backboard. A high quality adjustable basketball hoop at box store prices. Finally, the D560 adjustable basketball system is covered by a 5 Year Warranty.
Backboard Edge Padding ($129 Value)
Standard curbside residential delivery in lower 48 states
Lift Gate service
Tracking number same day shipment leaves warehouse
$1,099.00

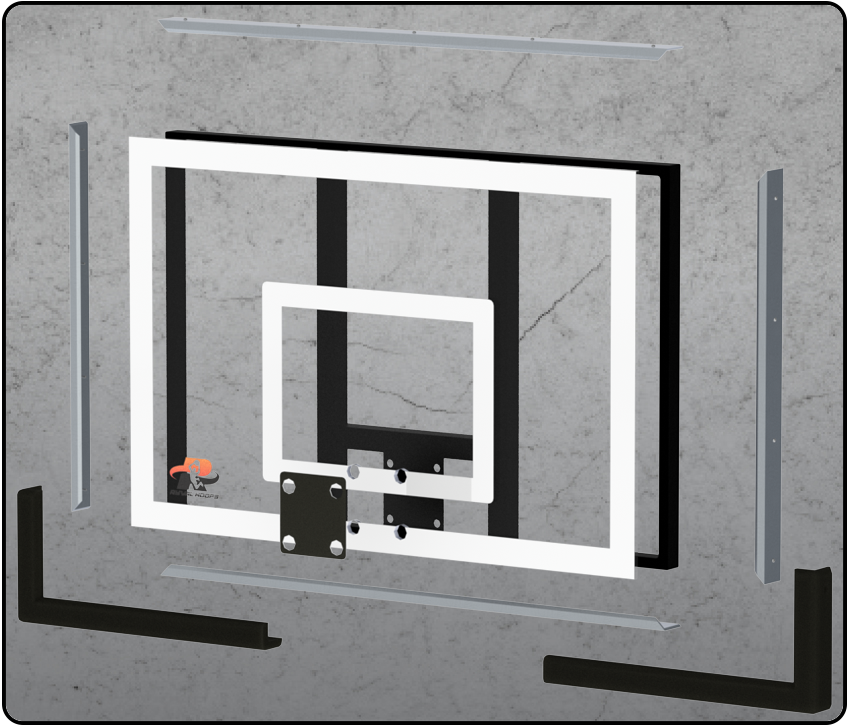

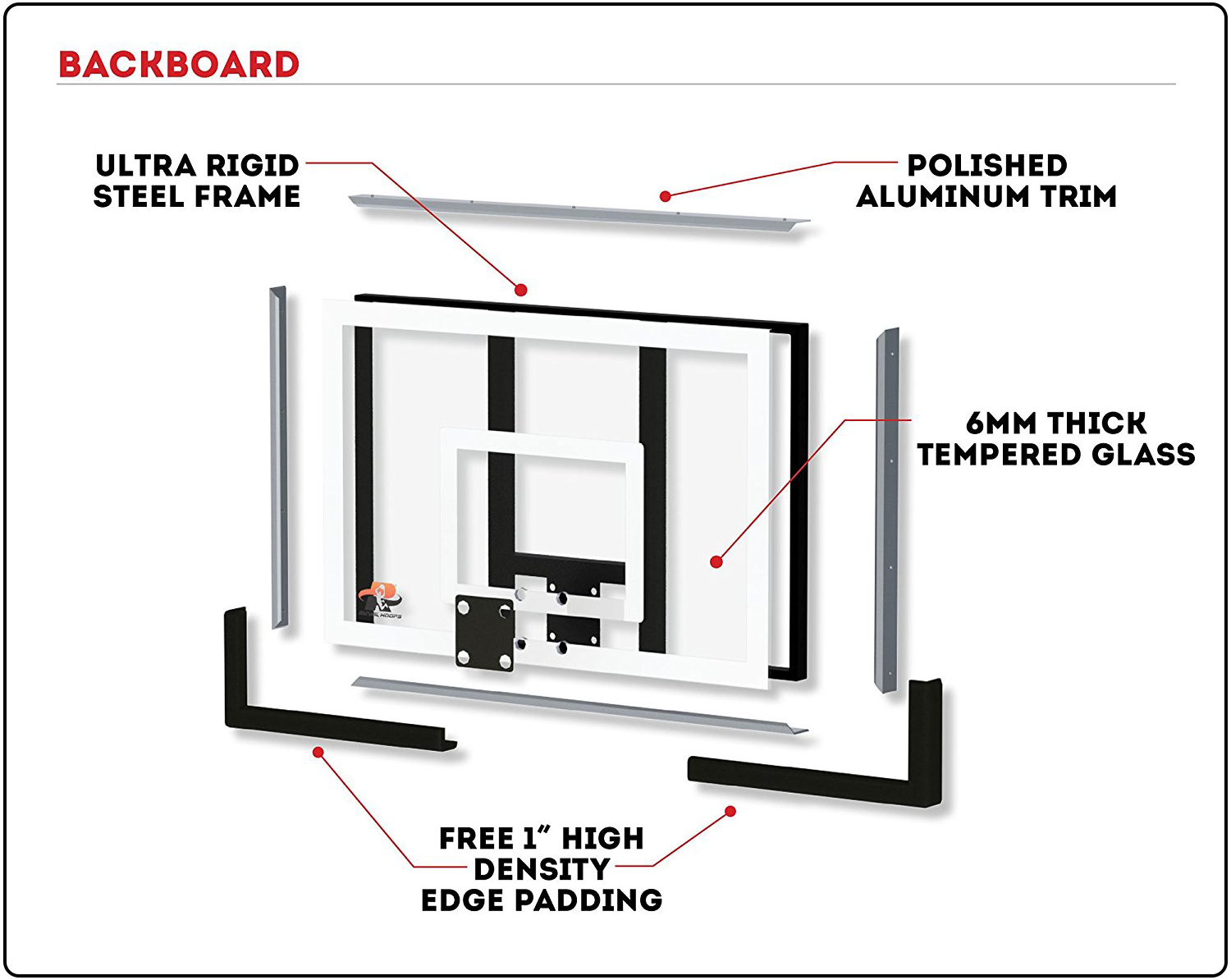

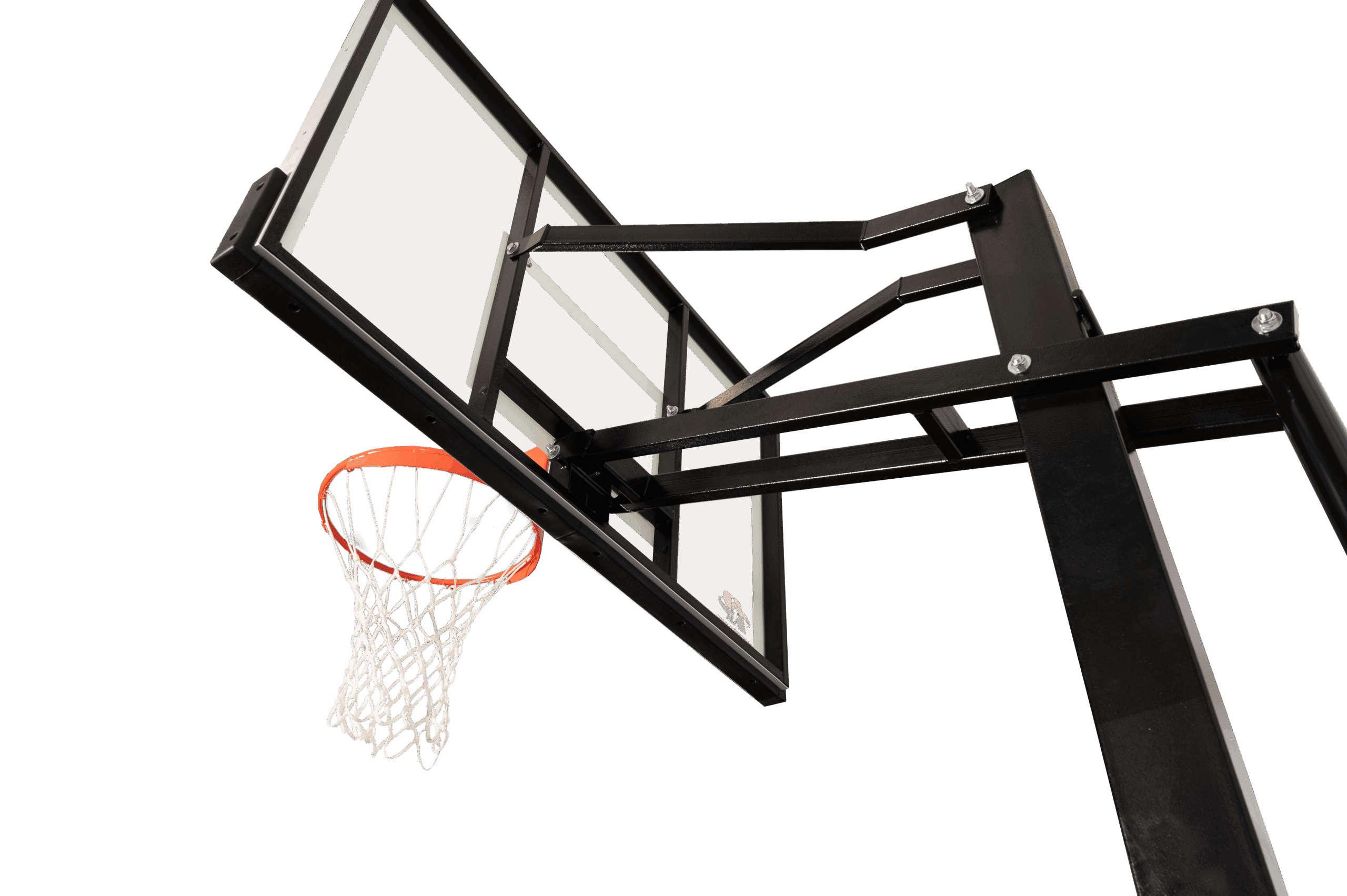

Heavy Duty H-Frame Welded Backboard Frame Design
The Ryval Driveway Series H-Frame brackets are welded to the backboard boarder frame to create a rigid surface for the tempered glass to create gym-like rebounding play.
3/8" Tempered Glass
Tempered Glass Ryval glass backboards will not fog, cloud or scratch, which are characteristics of acrylic backboards. Structurally, the 8mm tempered glass performs similar to gym style backboards in rebounding & game play.
60" Backboard Size
Ryval 60” backboards outperform box store brands and are popular with homes that have one, two and three car driveways. Very popular with moderate size courts.
24’ of Steel Backboard Frame
The D560 H-Frame is constructed with 24 feet of 1” x 1.5” powder coated square tube steel to support the tempered glass backboard & flex rim.
Gym-Quality Ball Deflection & Rebounding
Gymnasium quality rebound response for a competitive play performance.
1" Thick Backboard Edge Padding
ALL Ryval backboards come equipped ready to play with factory pre-installed safety backboard edge padding. The pre-installed padding also is added protection for the glass backboard during shipping.
2" Die Cast Aluminum Frame
The 2” aluminum frame protects glass edge and adds gym-like styling.

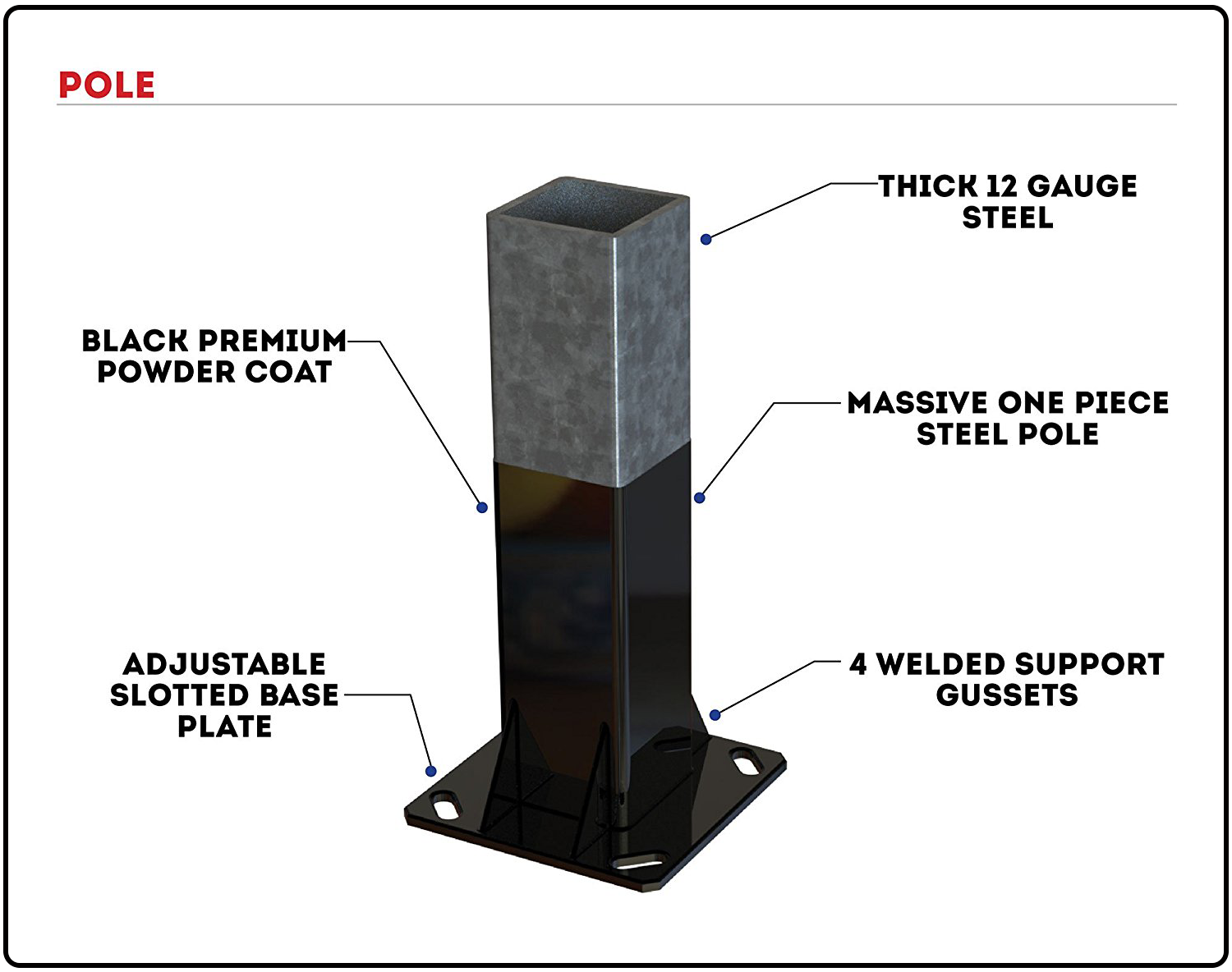

Thick 12 Gauge Steel
Driveways Series uses 12-gauge (7/64”) one-piece powder coated steel pole to support years of competitive play.One-Piece Heavy-Gauge Steel Pole.
Ryval only offers one-piece pole designs, lessens shake, sway & minimizing vibration.
4 Welded Support Gussets
The Drive Series 12-gauge (7/64”) pole is welded to base plate with 4 husky gussets adding substantial stability. Gussets help to minimize vibration, pole shake.
3/8 Inch Thick Base Plate
The main pole is welded to a 3/8” steel base plate. The base plate is the anchor point between the “J” bolt pier base & main structural pole.
Adjustable Slotted Base Plate
The slotted holes allow for minor adjustment that often is needed to square-up your pole with your driveway or court, after concrete has set.
Can I Take My Goal with Me if I Move?
Ryval Hoop's main pole base is fastened to 4 very large J-bolts that are in a concrete pier. You would only need to purchase a Ryval J-bolt ground anchor assembly kit for your new location. After some disassembly, you would un-bolt the goal from the J-bolts & move it to your new home.
Steel-Reinforced Ground Anchor Pier
4 pieces of 3/8” steel rebar is included to reinforce your concrete pier for a long-lasting solid base.
J-Bolts & Template Pier Installation
The pole is anchored to the pier with 4 hardened zinc plated steel J-bolts. A steel template is included to ensure the J-Bolts are set in the concrete perfectly and later will line up with the base of the pole.
Fine Calibration Leveling Nuts
Eliminates the chance of a crooked or out of plumb pole that are traits of direct-burial pole and flange to flange-mounted goal systems. Every Ryval goal pole can be installed to perfect plumb with fine adjustments that can be made with the J-bolt Leveling Nuts.
Goal Weight
263 lbs.
Goal Shipping Weight
350 lbs.

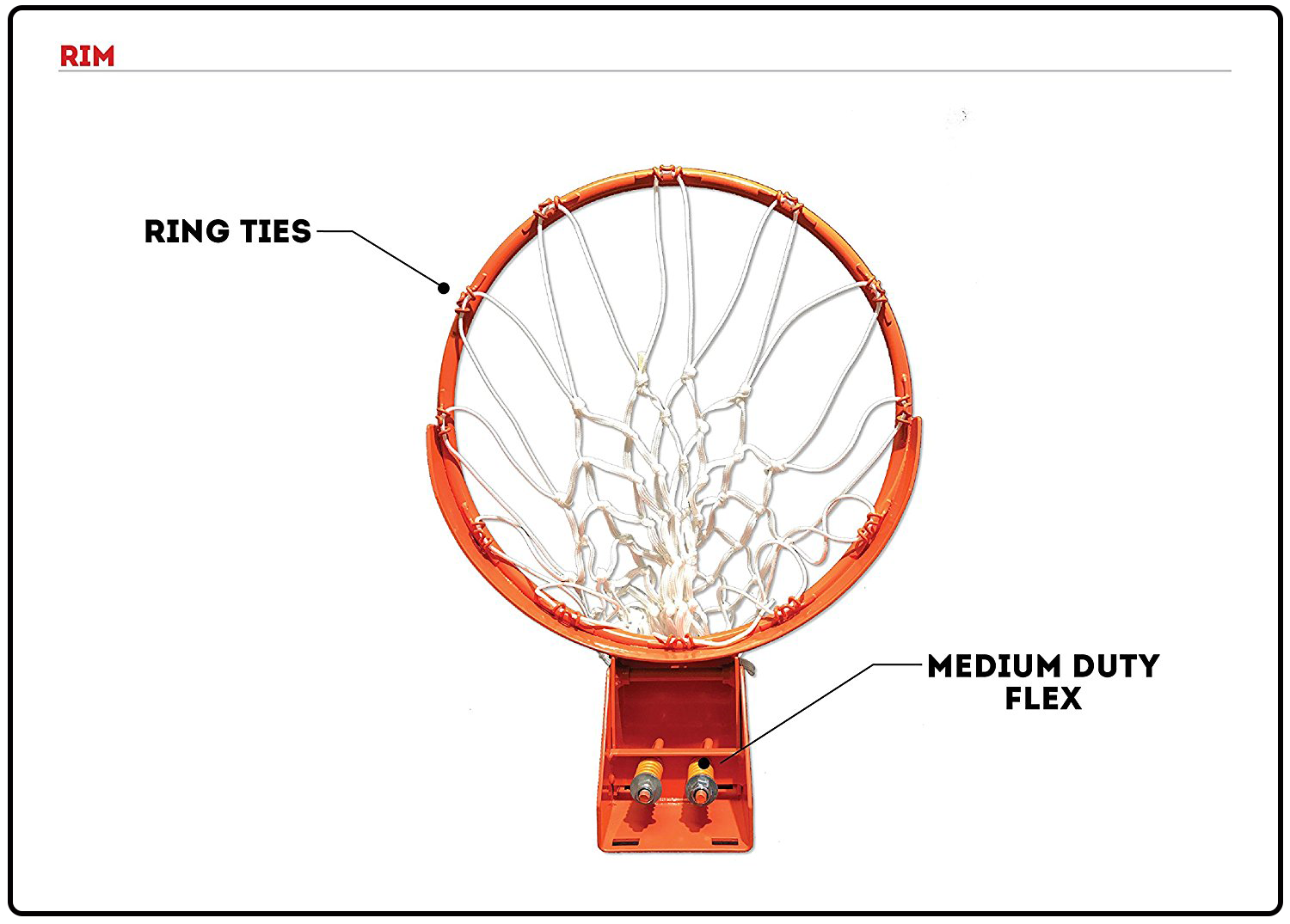

Medium Duty Flex Rim
Best in its class, the heavy gauge unbendable steel ring and a welded gusset are superior to box store rims. The two calibrated heavy springs are tuned to flex under pressure for gym-like performance & safety.
Regulation Rim
5/8" diameter solid steel ring is ready for years of dedicated practice & play.
Rigid Rim Ring
Welded gussets support the regulation ring 50% of its circumference making it unbendable for any dunk.
Heavy Gauge Steel
Ryval rims are built for the full force of your game.
Classic Orange
A baked-on UV resistant durable orange powder coat finish protects your rim from rust.
Classic Spiral Net Ties
Replacing the net is quick and easy.
All-Weather Net
Designed to last years in all climates.
Innovative Rim Mounting
The risk of breaking your tempered backboard glass is eliminated with a unique way of mounting the rim directly to the lower main structural arm, which takes all pressure from the rim and transfers it thru the arm to the main structural pole. This is accomplished by cutting out the glass where the rim fastens to the lower structural arm eliminating any way for the rim springing back to contact the glass during play.
Adjustable to As Low As 8'
Younger competitors can work on proper shooting technique at 8' rim height.
Variable Height, Not Fixed Intervals
Unlike other brands that will only adjust in 6" intervals Ryval Hoop goals can be adjusted to any height you want, increasing the height as you master them.Children can easily raise & lower the height to equal the player’s skill level.
Installation made easy at 5'
One of the final installation steps of adding the heavy backboard and rim can now be finished without a ladder.
No awning cranks, No broomsticks
No parts to hunt for in your garage to adjust the height of your goal. Turn the handle right to go up, left to go down.

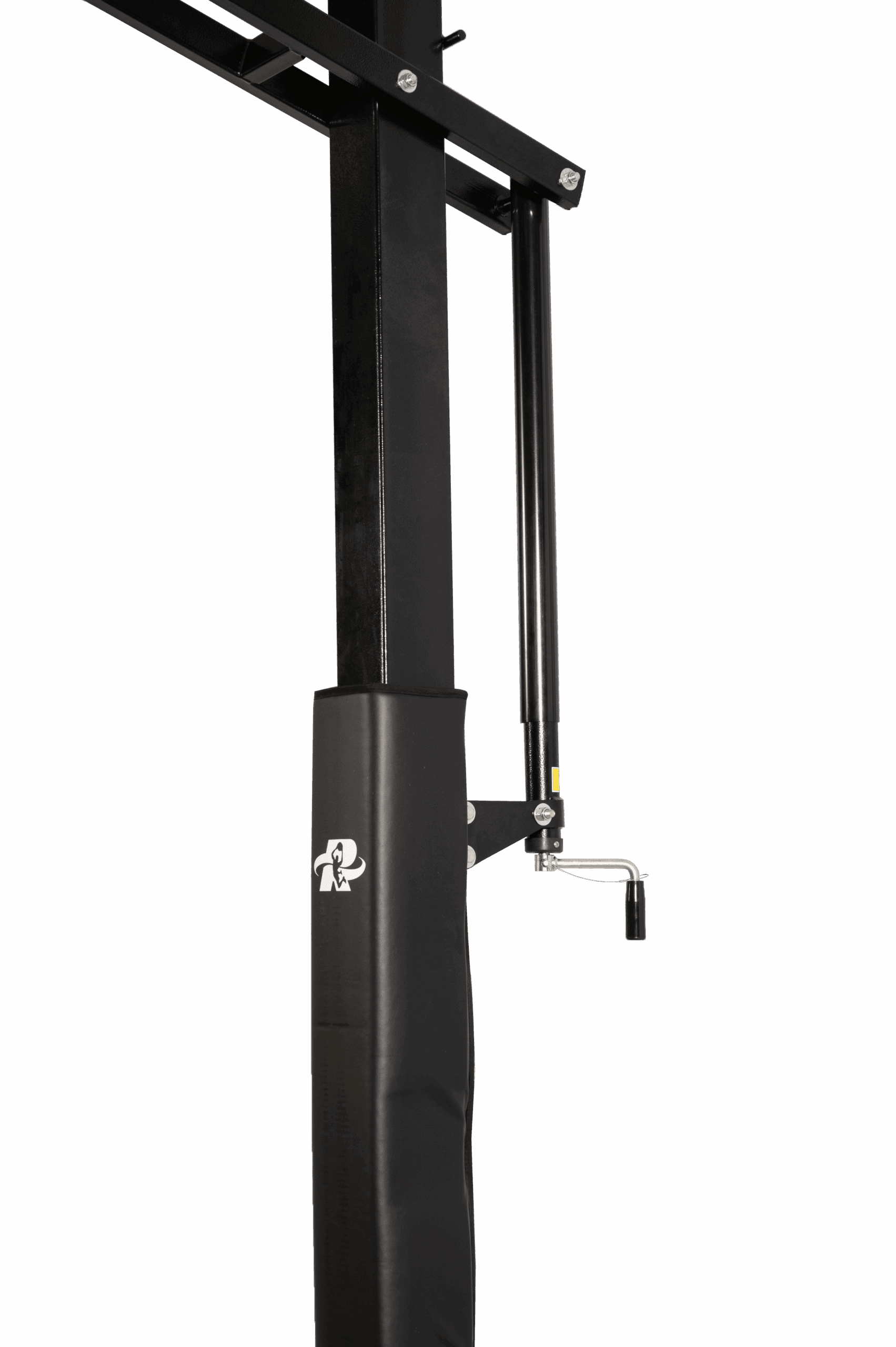

Enclosed Actuator
A fully enclosed actuator mechanism keeps children fingers safe while adjusting the height.

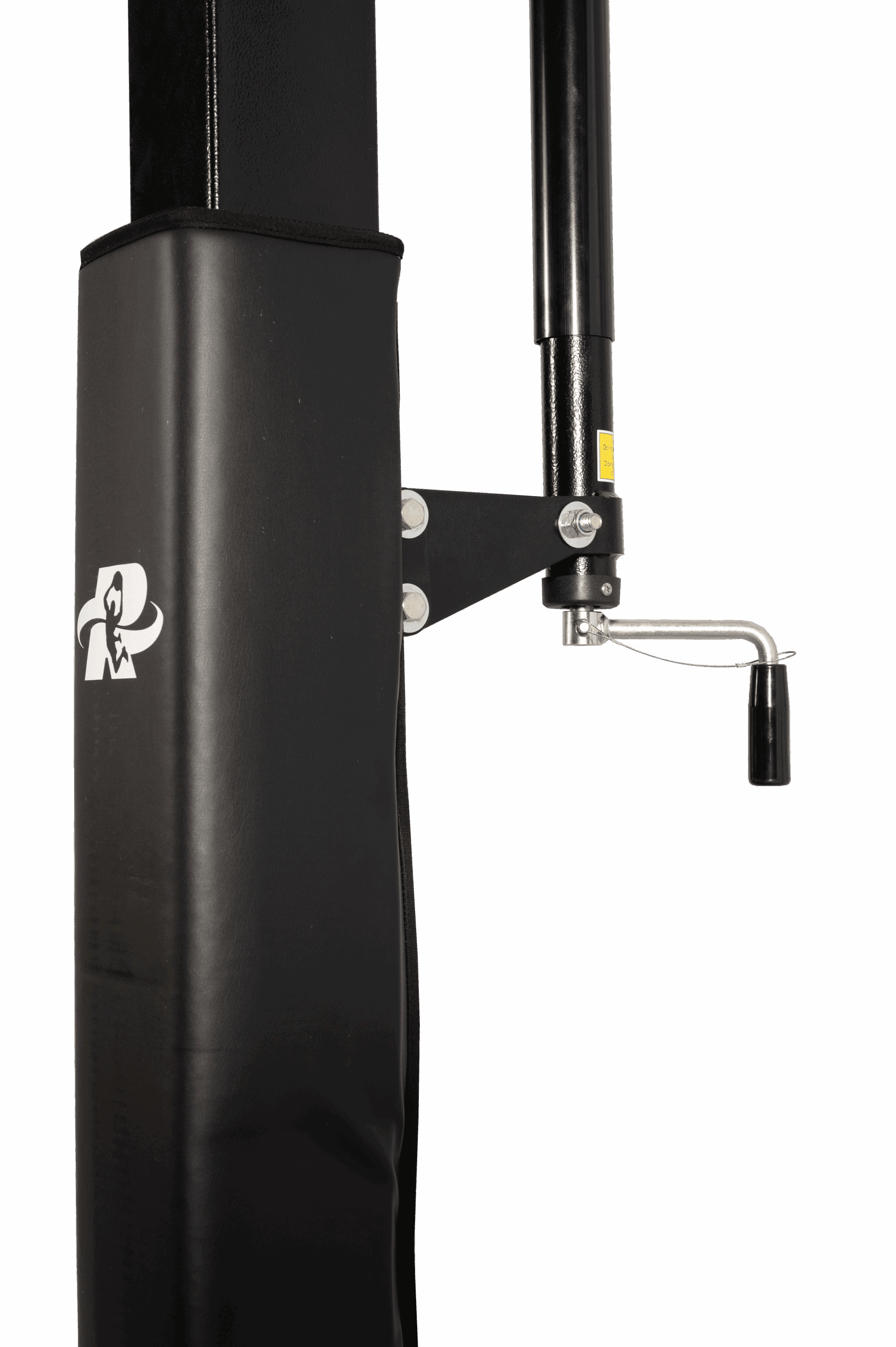

Removable Handle
The D560 removable actuator crank handle is secured with a wired pin. Removing the handle would prevent unauthorized height adjustment for younger players during unsupervised play or if you leave for a vacation and want the goal to remain at a fixed height.
Rim Height Indicator Location
The rim height indicator is on the actuator near eye level for easy viewing to the person adjusting the goal height.
Accurate Rim Height Indicator Installation
The rim height indicator is the very last step of the basketball goal installation. The height indicator is set after adjusting the rim ring to regulation height of 10 feet above the court surface below.
Accessible Actuator Handle
Ryval’s rim height adjusting crank handles are mounted to be accessible for the reach of all ages.
 D560 |
 C554 |
 X660 |
|
|---|---|---|---|
| BACKBOARD SIZE | 60” x 36″ | 54″ x 36″ | 60″ x 38″ |
| GLASS THICKNESS | 8mm Tempered Glass | 1/2” Tempered Glass | 3/8” Tempered Glass |
| BACKBOARD TYPE | Standard H Frame | Pro Clear/Arena View | Pro Clear/Arena View |
| BACKBOARD PADDING | 1″ Thick | 1″ Thick | 1″ Thick |
| POLE SIZE | 5″ x 5″ | 5″ x 5″ | 6″ x 6″ |
| POLE THICKNESS | 12 Gauge | 7 Gauge | 11 Gauge |
| POLE PADDING | No Pole Pad | 2″ Thick | 1-1/4” Thick |
| GUSSET PAD | No Gusset Pad | 2″ Thick | 1-1/4” Thick |
| OVERHANG | 2.5′ | 3′ | 2.5′ |
| ADJUSTABLE | 8′ to 10′ | 5′ to 10′ | 7.5′ to 10′ |
| LIFT ASSIST CYLINDERS | 0 | 1 | 0 |
| RIM | Medium Duty Flex | Dual Spring Heavy Duty Break Away Flex Rim w/Pro Tube™ Net Connector | Dual Spring Heavy Duty Break Away Flex Rim w/Pro Tube™ Net Connector |
| RUST PROTECTION | Hot Dip Galvanized | Electroplated Zinc | |
| HARDWARE | Quality Zinc Plated | XXL Stainless Steel | XL Stainless Steel |
| FINISH COATING | Black Textured Powder Coat Paint | Premium Powder Coat Paint | Premium Powder Coat Paint |
| WEIGHT | 263 lbs | 458 lbs | 352 lbs |
| WARRANTY | 5 Year | Lifetime | Lifetime |
D560 |
C554 |
X660 |
|---|---|---|
| BACKBOARD SIZE | ||
| 60” x 36″ | 54″ x 36″ | 60″ x 38″ |
| GLASS THICKNESS | ||
| 8mm Tempered Glass | 1/2” Tempered Glass | 3/8” Tempered Glass |
| BACKBOARD TYPE | ||
| Standard H Frame | Pro Clear/Arena View | Pro Clear/Arena View |
| BACKBOARD PADDING | ||
| 1″ Thick | 1″ Thick | 1″ Thick |
| POLE SIZE | ||
| 5″ x 5″ | 5″ x 5″ | 6″ x 6″ |
| POLE THICKNESS | ||
| 12 Gauge | 7 Gauge | 11 Gauge |
| POLE PADDING | ||
| No Pole Pad | 2″ Thick | 1-1/4” Thick |
| GUSSET PAD | ||
| No Gusset Pad | 2″ Thick | 1-1/4” Thick |
| OVERHANG | ||
| 2.5′ | 3′ | 2.5′ |
| ADJUSTABLE | ||
| 8′ to 10′ | 5′ to 10′ | 7.5′ to 10′ |
| LIFT ASSIST CYLINDERS | ||
| 0 | 1 | 0 |
| RIM | ||
| Medium Duty Flex | Dual Spring Heavy Duty Break Away Flex Rim w/Pro Tube™ Net Connector | Dual Spring Heavy Duty Break Away Flex Rim w/Pro Tube™ Net Connector |
| RUST PROTECTION | ||
| Hot Dip Galvanized | Electroplated Zinc | |
| HARDWARE | ||
| Quality Zinc Plated | XXL Stainless Steel | XL Stainless Steel |
| FINISH COATING | ||
| Black Textured Powder Coat Paint | Premium Powder Coat Paint | Premium Powder Coat Paint |
| WEIGHT | ||
| 263 lbs | 458 lbs | 352 lbs |
| WARRANTY | ||
| 5 Year | Lifetime | Lifetime |
**Standard curbside residential delivery with lift gate service in the lower 48 states. Standard delivery service does not include Special Delivery Services. Scheduled delivery appointment and adult signature is required. Some Restrictions do apply. Contact us for details and pricing for Special Delivery Services.**
| Pole | |
|---|---|
| Pole Size | 5” x 5” with 12 gauge (7/64″) steel thickness |
| Pole / Gusset Padding | Not available on this model |
| Flanged Base | 8-5/8″ Wide x 9-5/8″ Long Base with 7″ between Anchor Holes (Center to Center) |
| Flanged Base Holes | Slotted for minor adjustments |
| Gussets | 4 Welded Gussets (2 Front and 2 Rear) |
| Backboard | |
|---|---|
| Backboard Size | 60” x 36” x 8mm |
| Backboard Glass | Tempered Glass |
| Backboard Steel Frame | 1.5″ x 1″ steel perimeter frame concealed behind backboard |
| Backboard Aluminum Trim | 2″ x 1″ aluminum frame provides unmatched esthetics and protects glass from damage |
| Rim Mounting Type | Through glass using grommets. No pressure on glass |
| Backboard Padding | 1” thick edge padding pre-installed on backboard |
| Extension Arms | |
|---|---|
| Overhang | 2.5′ from front of pole to front of backboard |
| Main Extension Arm | 2-3/8″ x 1-3/16″ x 14 gauge (5/64″) steel thickness. Two cross members. |
| Upper Extension Arms | 2″ x 1″ x 14 gauge (5/64″) steel thickness. |
| Adjustable Height | |
|---|---|
| Adjustable | 8′ to 10′ |
| Crank Handle Height | 4′ |
| Crank Handle Type | Removable 90° Crank Handle |
| FX Lift Assist Cylinders | Not Available on this model |
| Rim | |
|---|---|
| Type | Medium Duty Flex Rim |
| Net Connection | Classic Spiral Net Ties |
| Rim Mounting Type | Through glass using grommets. No pressure on glass |
| Rust Guard | |
|---|---|
| Hardware Protection | Quality Zinc Plated |
| Finish Coating | Black Textured Power Coat Paint |
| Anchor | |
|---|---|
| Moveable to new location | Yes, Just need a new J-Bolt Kit |
| J-Bolt Quantity | 4 |
| J-Bolt Size | 1/2″ diameter 19″ Long |
| Shipping | |
|---|---|
| Shipping Service | Standard Curbside Delivery |
| System Weight | 263 lbs. |
| Shipping Weight | 350 lbs. |
| Packaging | 3 boxes on 2 pallets |
| Warranty | |
|---|---|
| Warranty Type | 5 yr Warranty |
| Dunking & Hanging | Not covered |
