C872

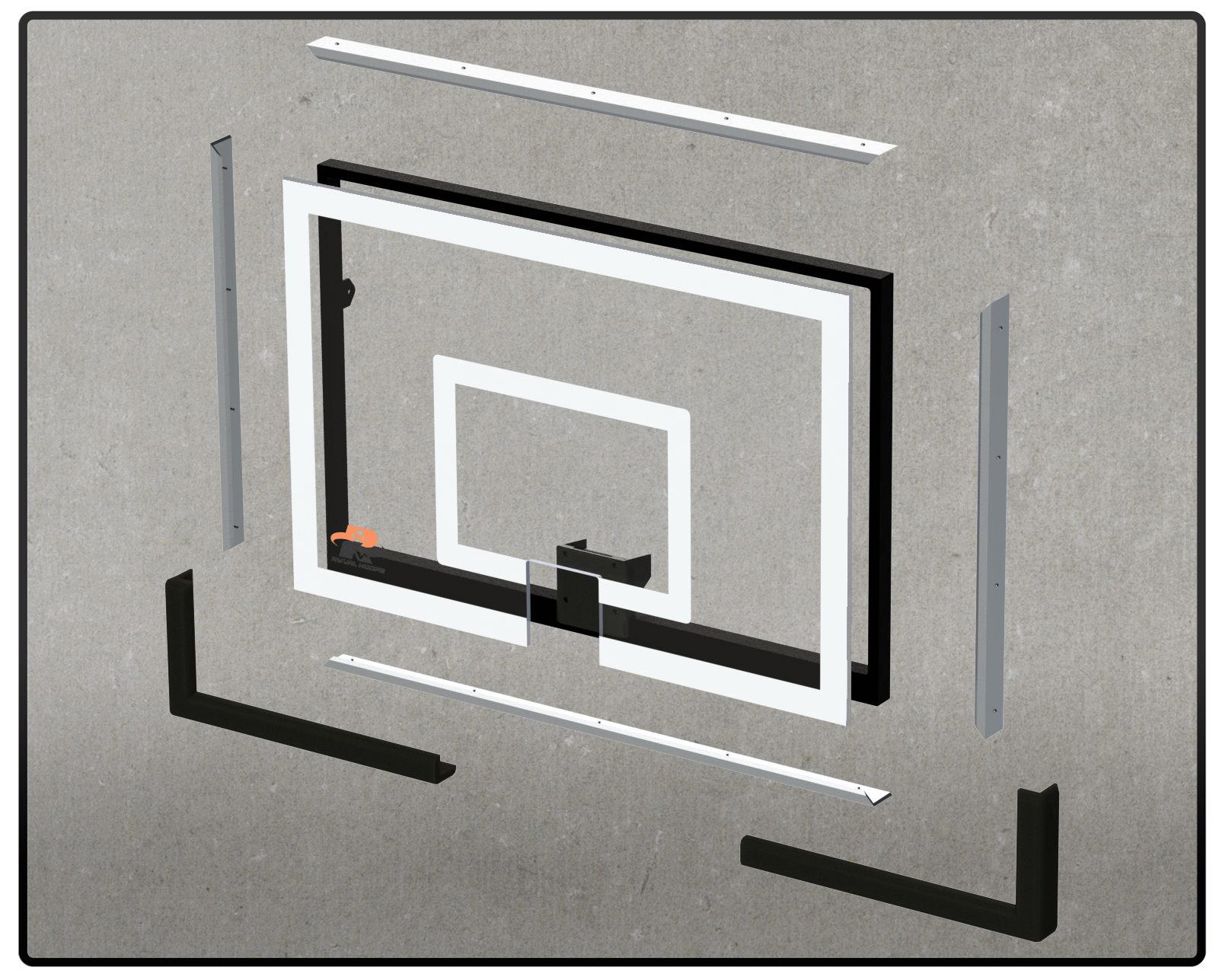

Arena View/Clear View Backboard Design
• Our Clear View Backboard is designed to eliminate the metal backboard frame distractions in the shooting square area. The gym-like rebounding play of the backboard comes from our square-tube steel frame that is welded together creating a rigid surface for the tempered glass.

1/2” Regulation Thickness Tempered Glass
• The Ryval glass backboards will not fog, cloud or scratch, which are characteristics of acrylic backboards. Structurally, the 1/2” tempered glass performs like gym style backboards in rebounding & game play.

72" x 42” Regulation Backboard Size
• Ryval Coach Series 72”x 42” backboards outperform box store brands and are popular with homes that have large driveways and courts. Same regulation dimension as high school gymnasiums, college and the pros.

19’ of Steel Backboard Frame
• The C872 frame is constructed with 19 feet of powder coated 2”x2” and 2”x1” square tube steel to support the tempered glass backboard & flex rim.

Gym-Quality Ball Deflection & Rebounding
• Gymnasium quality rebound response for competitive play performance.

2.75" Die Cast Aluminum Frame
• The 2.75” wide x 5mm thickness aluminum frame protects glass edge and adds gym-like styling.

1" Thick Backboard Edge Padding
• ALL Ryval backboards come equipped ready to play with factory pre-installed safety backboard edge padding. The pre-installed padding also is added protection for the glass backboard during shipping.

Thick 7 Gauge Steel
• The Coach Series C872 massive one-piece 6”x 8” pole is 7-gauge (3/16”) steel and rust protected with a hot-dipped galvanized coating, then powder coated to support years of competitive play.

XXL Stainless Steel Hardware
• Exceptional resistance to corrosion, higher tensile strength than standard zinc coated hardware & aesthetically appealing. Ryval Hoops Exclusive Stainless Steel nylon locking nuts insure your goal hardware does not loosen with play over time.

6x8 One-Piece Heavy-Gauge Steel Pole
• Ryval only offers one-piece pole designs, lessens shake, sway & minimizing vibration.

8 Steel Welded Support Gussets
• The Coach Series 7-gauge pole is welded to base plate with 8 husky 3/8”steel gussets adding substantial stability. Gussets help to minimize vibration, pole shake.

9/16” inch Thick Base Plate
• The main pole is welded to industry leading 9/16” thick steel base plate. The base plate is the anchor point between the “J” bolt pier base & main structural pole.

Adjustable Slotted Base Plate
• The slotted holes allow for minor adjustment that often is needed to square-up your pole with your driveway or court, after concrete has set.

2” thick Arena styled Safety Pole Padding & Gusset Padding
• All weather custom fitted 2" thick high-density foam pole & gusset pad helps keeps players safe during aggressive competition. Secures with heavy-duty Velcro straps and is designed to cover the front and two sides of the main pole. Pyramid style gusset pad extends to cover base plate gusset area & j-bolt hardware.

Can I Take My Goal with Me if I Move?
• Ryval Hoop main pole base is fastened to 4 very large J-bolts that are in a concrete pier. You would only need to purchase a Ryval J-bolt ground anchor assembly kit for your new location. After some disassembly, you would un-bolt the goal from the J-bolts & move it to your new home.

Steel-Reinforced Ground Anchor Pier
• 4 pieces of 1/2” steel rebar is included to reinforce your concrete pier for a long-lasting solid base.

J-Bolts & Template Pier Installation
• The pole is anchored to the pier with 4 hardened zinc plated steel J-bolts. A steel template is included to insure the J-Bolts are set in the concrete perfectly and later will line up with the base of the pole.

Fine Calibration Leveling Nuts
• Eliminates the chance of a crooked or out of plumb pole that are traits of direct-burial pole and flange to flange mounted goal systems. Every Ryval goal pole can be installed to perfect plumb with fine adjustments that can be made with the J-bolt Leveling Nuts.

Goal Weight
• 630 lbs.

Goal Shipping Weight
• 685 lbs.

Triple Spring Competition Grade Break Away Rim w/ProTube™ Net Connector
• Best in its class, superior to box store rims, meets NCAA and NFSHSA specifications. The three calibrated heavy springs are tuned for regulation competitive play and allow the rim to break away when 165lbs of pressure/force is applied. The rim will instantly spring back to the horizontal playing position when the player releases force on the rim. The rim is secured to the lower main structural arm with a heavy gauge 5mm thick mounting plate. The net securing feature, that is similar to the NBA, is designed for safer rim play, uses a nearly unseeable 16mm diameter Stainless Steel wire thru continuous tube to safely attach the nylon net so that there is nothing for players to catch their fingers on. A classic orange UV resistant durable powder coat finish protects your rim in all-weather conditions.

Regulation Ring
• 5/8" diameter solid steel ring is ready for years of dedicated practice & play.

ProTube™ Net Connector
• Eliminates the classic spiral net ties, a section of the net will never un-loop during play. Uses a nearly invisible continuous stainless steel wire thru tube to attach the net in place, eliminating anything for players to catch fingers on. This style of net attachment system is used in NBA & NCAA.

All-Weather Net
• Designed to last years in all climates.

Rigid Rim Ring
• Welded gussets support the regulation ring 50% of its circumference making it unbendable for any dunk.

Heavy Gauge Steel
• Ryval rims are built for the full force of your game.

Classic Orange
• A baked-on UV resistant durable orange powder coat finish protects your rim from rust.

Innovative Rim Mounting
• The risk of breaking your tempered backboard glass is eliminated with a unique way of mounting the rim directly to the lower main structural arm, which takes all pressure from the rim and transfers it thru the arm to the main structural pole.
• This is accomplished by cutting out the glass where the rim fastens to the lower structural arm eliminating any way for the rim springing back to contact the glass during play.

Adjustable to As Low As 5'
• Younger competitors can work on proper shooting technique at 5-foot rim height. Slam dunk competition!

Easily Adjust Height with 2 FX Lift Assist Cylinders
• Children can easily raise & lower the height of the C872 regulation size backboard to equal the player’s skill level.

Installation made easy at 5’
• One of the final installation steps of adding the heavy backboard and rim can now be finished without a ladder.

Removable Handle
• The C872 removable actuator crank handle is secured with a wired pin. Removing the handle would prevent unauthorized height adjustment for younger players during unsupervised play or if you leave for a vacation and want the goal to remain at a fixed height.

Variable Height, Not Fixed Intervals
• Unlike other brands that will only adjust in 6" intervals Ryval Hoop goals can be adjusted to any height you want, increasing the height as you master them.

Enclosed Actuator
• A fully enclosed actuator mechanism keeps children fingers safe while adjusting the height.

No awning cranks, No broomsticks
• No parts to hunt for in your garage to adjust the height of your goal. Turn the handle right to go up, left to go down.

Rim Height Indicator Location
• The rim height indicator is on the actuator near eye level for easy viewing to the person adjusting the goal height.

Accurate Rim Height Indicator Installation
• The rim height indicator is the very last step of the basketball goal installation. The height indicator is set after adjusting the rim ring to regulation height of 10 feet above the court surface below.

Accessible Actuator Handle
• Ryval’s rim height adjusting crank handles are mounted to be accessible for the reach of all ages.

Free Freight Delivery
• Standard curbside residential delivery in lower 48 states.
• Lift Gate service.
• Leaves warehouse in 2 to 3 business days.
• You will receive a tracking number same day your goal leaves warehouse.
• Delivery in 4-10 business days on average.
• Carrier will call and schedule delivery time for the curbside delivery.
• Shipment is fully insured for freight damage.

**Free standard curbside residential delivery with lift gate service in the lower 48 states. Standard delivery service does not include Special Delivery Services. Scheduled delivery appointment and adult signature is required. Some Restrictions do apply. Contact us for details and pricing for Special Delivery Services.**
